POWER EQUIPMENT
500C12V-190ZLP Diesel ENGINE

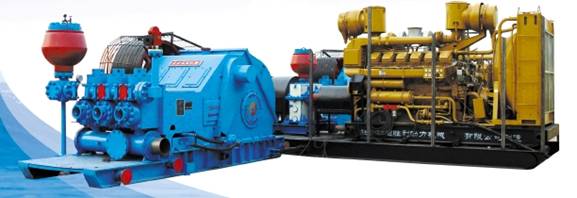

Our deisel engine can be used for driving mud pump and
drawworks in drilling rig. And it also widely used for
ship power supply. It range from 400KW-1500KW
|
Model |
C12V190ZLP |
|
Drawing No |
T12V190ZLD-2.00A |
|
Rated Power (kW) |
735 |
|
Rated Speed (r/min) |
1200 |
|
Type |
60°V-12 cylinders,
water cooling, 4-stroke,
Turbocharger |
|
Electronic governor |
|
Bore×Stroke (mm) |
190×210 |
|
fuel consumption |
204+5%g/kwh |
|
Lubrication oil consumption
(g/kW•h) |
≤1.5 |
|
Compression ratio |
14:1 |
|
Total displacement (L) |
71.45 |
|
Start mode |
24V DC Motor or pressurized gas start |
|
Crankshaft rotation
(facing output end) |
counterclockwise |
|
Power output |
Flywheel |
|
Net weight (kg) |
7500 |
|
Dimension(L×W×H) (mm) |
4301×1980×2678 |
Nature Gas Generator and gas engine

Natural gas engine has two series: series 190 with
single cylinder, series105 with four or six cylinders.
It is a kind of internal combustion engine which uses
natural gas, LP-gas and other combustible gas as fuel.
Usage:
1. Oilfield production, such as direct driving pump
units.
2. Pump stands, such as injection pump, gather and
delivery pumps etc.
3. Generating stations and engineering machinery which
is a kind of ideal unit.
Features:
1. the new materials, process and technology are
adopted.
2. Start fast, running reliable, easy operation and
maintenance.
3. Compact construction, long overhaul, suitable working
in bad weather, harsh environment.
Key Parameters of Models
|
No |
Model |
Rated power |
Rated speed |
Set weight |
Overall dimensions |
Main application |
|
1 |
1190NT-1 |
25kw |
750r/min |
1300kg |
1490 × 1283 × 1225mm |
Driving pumping unit and waterflood pump
|
|
2 |
1190NT-2 |
30kw |
850 r/min |
1300kg |
1490 × 1283 × 1225mm |
Driving pumping unit and waterflood pump
|
|
3 |
4105ADT |
30KW |
1500R/MIN |
550kg |
1550 ×730 × 1250mm |
Driving pumping unit and waterflood pump
|
|
4 |
6105ADT |
40KW |
1500R/MIN |
660kg |
1800 ×730 × 1250mm |
Driving pumping unit and waterflood pump
|
|
5 |
4190TD |
140kw |
1000 r/min |
2900kg |
2000 × 1175 × 1710mm |
For 120kw generating set |
|
6 |
12V190T |
450kw |
1000 r/min |
5100kg |
2382 × 1560 × 2070mm |
For engineering machinery and generating set
|
|
7 |
12V190TD |
450kw |
1000 r/min |
5100kg |
2382 × 1560 × 2070mm |
For 400kw generating set |
|
8 |
12V190TD-1 |
450kw |
1000 r/min |
5100kg |
2382 × 1560 × 2070mm |
For 400kw generating set |

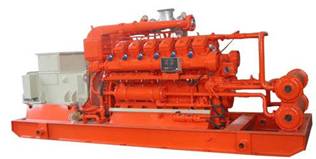

Gas Generators
Natural
gas generator sets covers 120 190 240 and 280 series
with over 30 models. Major models include 24kw 120kw
400kw 500kw 600kw 700kw1000kw.
Usage:
1. Build power station burning waste natural gas to
generate electricity into network
2. Drive pumping units individually in production crew.
3. Drive water injection pump, air compressor or other
special equipments for oil field application.
Features:
1. Suitable for being fueled with natural gas with
calorific, having perfect ombustion and smooth
operation.
2. Support natural gas at low pressure without
increasing the pressure with reduced investment and
improved effective generating capacity without requiring
a special gas tank.
3. A self-support unit with less auxiliaries.
4. A generator set or several sets in parallel operate
also it generates electricity into electric network.
5. High quality with less mechanical load and low speed.
6. Key control components are imported with the most
advanced performance.
7. complete protective system.
Application:
The gas generator set also can widely used in coal-seam
gas, coking gas, refinery gas, carbon black gas, sewage
gas, straw gas.
Key Parameters of Models:
|
Model |
Rated Power (kw) |
Engine
Model |
Overall
Dimensions (mm) |
Dry
Weight (kg) |
Features |
|
24GF47-T |
24 |
T1190N |
2885×1290×1420 |
2000 |
Semi-auto control panel is a choice. Used widely
for driving electric pumping unit |
|
30 GF-T |
30 |
T3120F |
1700×1085×1670 |
1050 |
Air-cooled |
|
90GF-T |
90 |
T4190-T |
3940×1600×1925 |
5000 |
|
|
120GF153-5T |
120 |
T4190-2 |
3675×1600×1925 |
5100 |
|
|
120GF-T |
120 |
T10V120F |
2600×990×1650 |
1175 |
Air-cooled, electronic speed governor
|
|
180GF-T |
180 |
T6190Y |
5325×1725×2207 |
8700 |
Hydraulic speed governor(option for electronic
speed governor) |
|
260GF-T |
260 |
T6190ZLDP-1 |
5000×1970×2300 |
9000 |
With turbocharger, Electronic speed governor
|
|
400GF-3T |
400 |
T12V190D-1 |
5000×1970×2468 |
12000 |
With heat converter |
|
400GF-5T |
400 |
T12V190D |
4506×1970×2310 |
11500 |
Generator set without fan |
|
500GF-T |
500 |
T12V190ZLD |
5925×1970×2778 |
13600 |
Turbocharged generator set |
|
500GF-2T |
500 |
T12V190ZLD-1 |
5506×1970×2698 |
12500 |
Turbocharged generator set with heat converter
|
|
600GF-S |
600 |
S12V190ZLD |
5925×1970×2778 |
13600 |
Duel fuel, turbocharged generator set
|
The gas engine and generator set features environmental
protection and energy conservation. They can serve in
much more fields rich in natural gas, coal seam gas,
coking gas, refinery gas, carbon black gas, sewage gas,
straw gas and other gases. Burning gases from oil field,
coalmine, refinery or coking plant, The gas generator
set produces electricity and send it into the definite
bas or for local consumption. It benefits environment,
save energy and decrease production cost.
The Technical Features:
EC Technology;
Pre-combustion Technology;
NC Ignition Technology;
Turbo charging Technology;
Air-cooling Technology;
TEM Technology;
The scope of
gas
engine and generator set covers 120, 190,
240, 280 series up to more than 50 models of products
rating from 24 Kw to 1000 Kw. Our products have been in
application for national oil field, gas field, coal mine
and coking plant, etc and also exported to more than 30
countries and regions including North and South America,
Africa, Mid Asia and South East Asia.
WE ARE ABLE TO SUPPLY SPARE PARTS AFTER SALES. |
