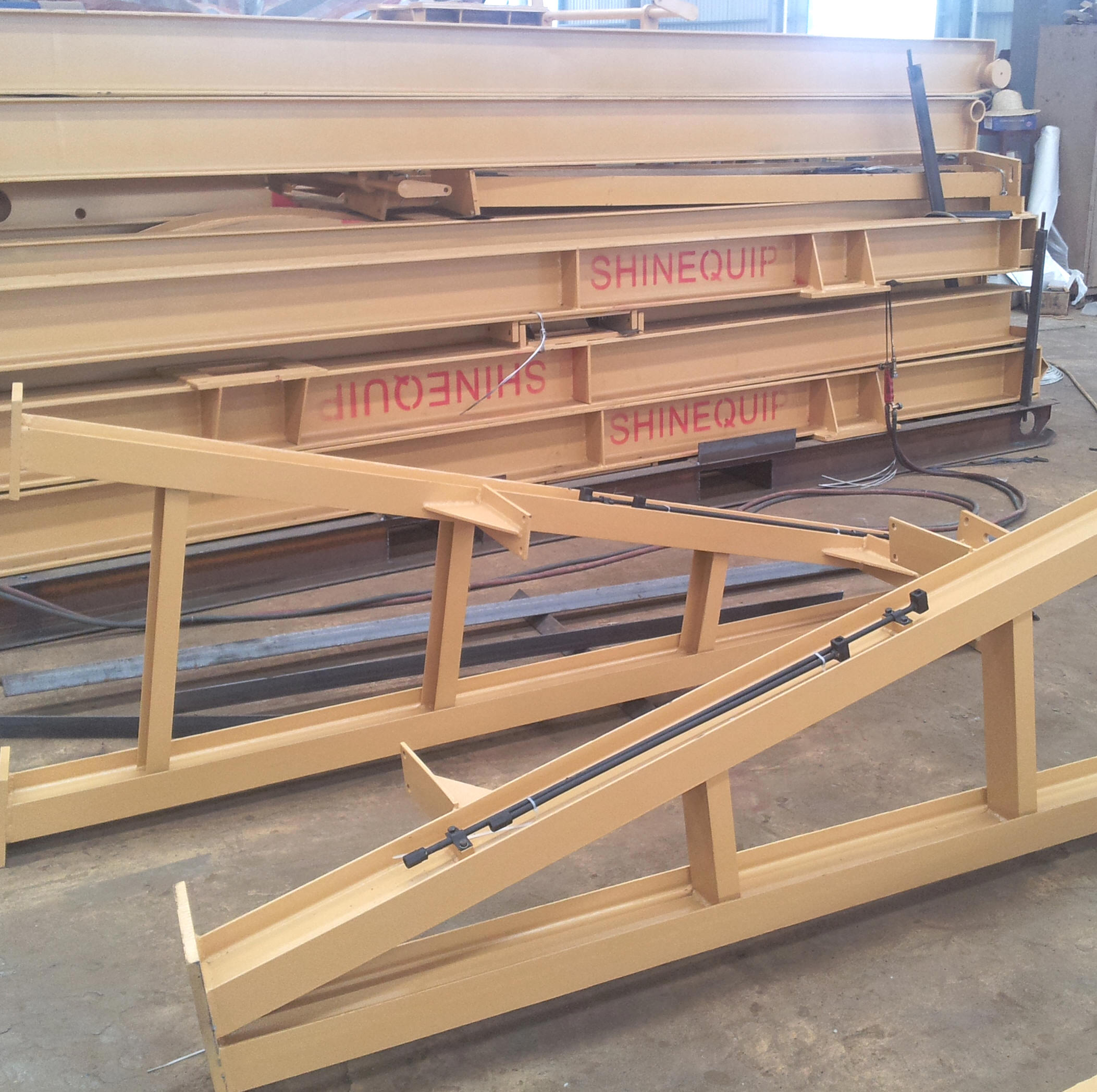

API 11E Beam Pumping Unit



API C series beam pumping units conform to the API 11E and Q1 specifications as well as meet and exceed all of the requirements of ISO 9001:2000 while at the same time maintaining the additional quality control requirements that are considered valuable to the oil and gas industry.

We are able to provide spare parts for API 11E standard Beam Pumping Units. Include Classic V belt, pulley,Primemover, motor controller, brake system, gearbox and bearing.

Model

Peak Torque Rating

KNm (lbin)

Polish Rod Capacity

10kN(lb)



Stroke Lengths

m (in)

Model

Peak Torque Rating

KNm (lbin)

Polish Rod Capacity

10kN(lb)

Stroke Lengths

m(in)

C57-76-42

6.5(57,000)

3.4(7,600)

1.07(42)

C228-173-74

26(228,000)

7.7(17,300)

1.88(74)

C57-89-42

6.5(57,000)

4.0(8,900)

1.07(42)

C228-200-74

26(228,000)

8.9(20,000)

1.88(74)

C57-95-48

6.5(57,000)

4.2(9,500)

1.22(48)

C228-213-86

26(228,000)

9.5(21,300)

2.18(86)

C57-109-48

6.5(57,000)

4.8(10,900)

1.22(48)

C228-246-86

26(228,000)

11.0(24,600)

2.18(86)

C57-76-54

6.5(57,000)

3.4(7,600)

1.37(54)

C228-173-100

26(228,000)

7.7(17,300)

2.54(100)









C228-213-120

26(228,000)

9.5(21,300)

3.05(120)

C80-109-48

9.0(80,000)

4.8(10,900)

1.22(48)









C80-133-48

9.0(80,000)

5.9(13,300)

1.22(48)

C320-213-86

37(320,000)

9.5(21,300)

2.18(86)

C80-119-54

9.0(80,000)

5.3(11,900)

1.37(54)

C320-256-100

37(320,000)

11.4(25,600)

2.54(100)

C80-133-54

9.0(80,000)

5.9(13,300)

1.37(54)

C320-305-100

37(320,000)

13.6(30,500)

2.54(100)

C80-119-64

9.0(80,000)

5.3(11,900)

1.63(64)

C320-213-120

37(320,000)

9.5(21,300)

3.05(120)









C320-256-120

37(320,000)

11.4(25,600)

3.05(120)

C114-133-54

13(114,000)

5.9(13,300)

1.37(54)

C320-256-144

37(320,000)

11.4(25,600)

3.66(144)

C114-143-64

13(114,000)

6.4(14,300)

1.63(64)









C114-173-64

13(114,000)

7.7(17,300)

1.63(64)

C456-256-120

53(526,000)

11.4(25,600)

3.05(120)

C114-143-74

13(114,000)

6.4(14,300)

1.88(74)

C456-305-120

53(526,000)

13.6(30,500)

3.05(120)

C114-119-86

13(114,000)

5.3(11,900)

2.18(86)

C456-365-120

53(526,000)

16,2(36,500)

3.05(120)









C456-256-144

53(526,000)

11.4(25,600)

3.66(144)

C160-173-64

18(160,000)

7.7(17,300)

1.63(64)

C456-305-144

53(526,000)

13.6(30,500)

3.66(144)

C160-143-74

18(160,000)

6.4(14,300)

1.88(74)

C456-305-168

53(526,000)

13.6(30,500)

4.27(168)

C160-173-74

18(160,000)

7.7(17,300)

1.88(74)









C160-200-74

18(160,000)

8.9(20,000)

1.88(74)

C640-305-120

73(640,000)

13.6(30,500)

3.05(120)

C160-173-86

18(160,000)

7.7(17,300)

2.18(86)

C640-256-144

73(640,000)

11.4(25,600)

3.66(144)









C640-305-144

73(640,000)

13.6(30,500)

3.66(144)

C912-427-216

105(912000)

19.2(42,700)

5.48(216)

C640-365-144

73(640,000)

16,2(36,500)

3.66(144)

C912-470-240

105(912000)

21.2(47,000)

6.09(240)

C640-305-168

73(640,000)

13.6(30,500)

4.27(168)

C912-427-192

105(912000)

19.2(42,700)

4.88(192)

C640-305-192

73(640,000)

13.6(30,500)

4.88(192)

C912-305-192

105(912000)

13.7(30,500)

4.27(168)









C912-365-168

105(912000)

16.5(36,500)

4.27(168)

C40-76-48

4.5(40000)

3.5(7,600)

1.22(48)

C912-305-168

105(912000)

13.7(30,500)

4.27(168)

C40-89-42

4.5(40000)

4.0(8,900)

1.07(42)

C912-427-144

105(912000)

19.2(42,700)

3.66(144)

C40-76-42

4.5(40000)

3.5(7,600)

1.07(42)









C40-89-36

4.5(40000)

4.0(8,900)

0.914(36)

C1280-365-240

1280000

36500

240









 API B Series Pumping Unit

API B series beam balanced pumpjacks mounted with Nature Gas Engine as prime mover. API B series pumpjack is conventional walking beam pumping units, it is the type of power equipment on the ground used in rod oil extraction. The products conform to API Spec.11E Specification for Pumping Units and other relative API standards, acquired the authorization to use Official API Monogram.

Technical Performances
1High reliability, simple operation, easy maintenance, long service life.
2Gear reducer is involutes herring-bone gearing, work smoothly and reliably.
3the complete machine with light weight, it’s convenient for installation and transportation.

Main Technical Parameter

No

Type

Polished Rod Capacity
lb

Stroke Length
in

Rated Torque

1

B-80D-119-64

11,900

6454

80,000

2

B-80D-76-64

7,600

6454

80,000

3

B-80D-133-54

13,300

5441

80,000

4

B-80-119-64

11,900

5441

80,000

5

B-80D-76-54

7,600

5441

80,000

6

B-80D-109-48

10,900

4835

80,000

7

B-57D-109-54

10,900

5441

57,000

8

B-57D-89-54

8,900

5441

57,000

9

B-57D-76-54

7,600

5441

57,000

10

B-57D-109-48

10,900

4835

57,000

11

B-57D-89-48

8,900

4835

57,000

12

B-40D-89-48

8,900

4835

40,000

13

B-40D-76-42

7,600

4229

40,000

14

B-25D-67-36

6,700

3627

25,000

15

B-16D-53-30

5,300

3023

16,000

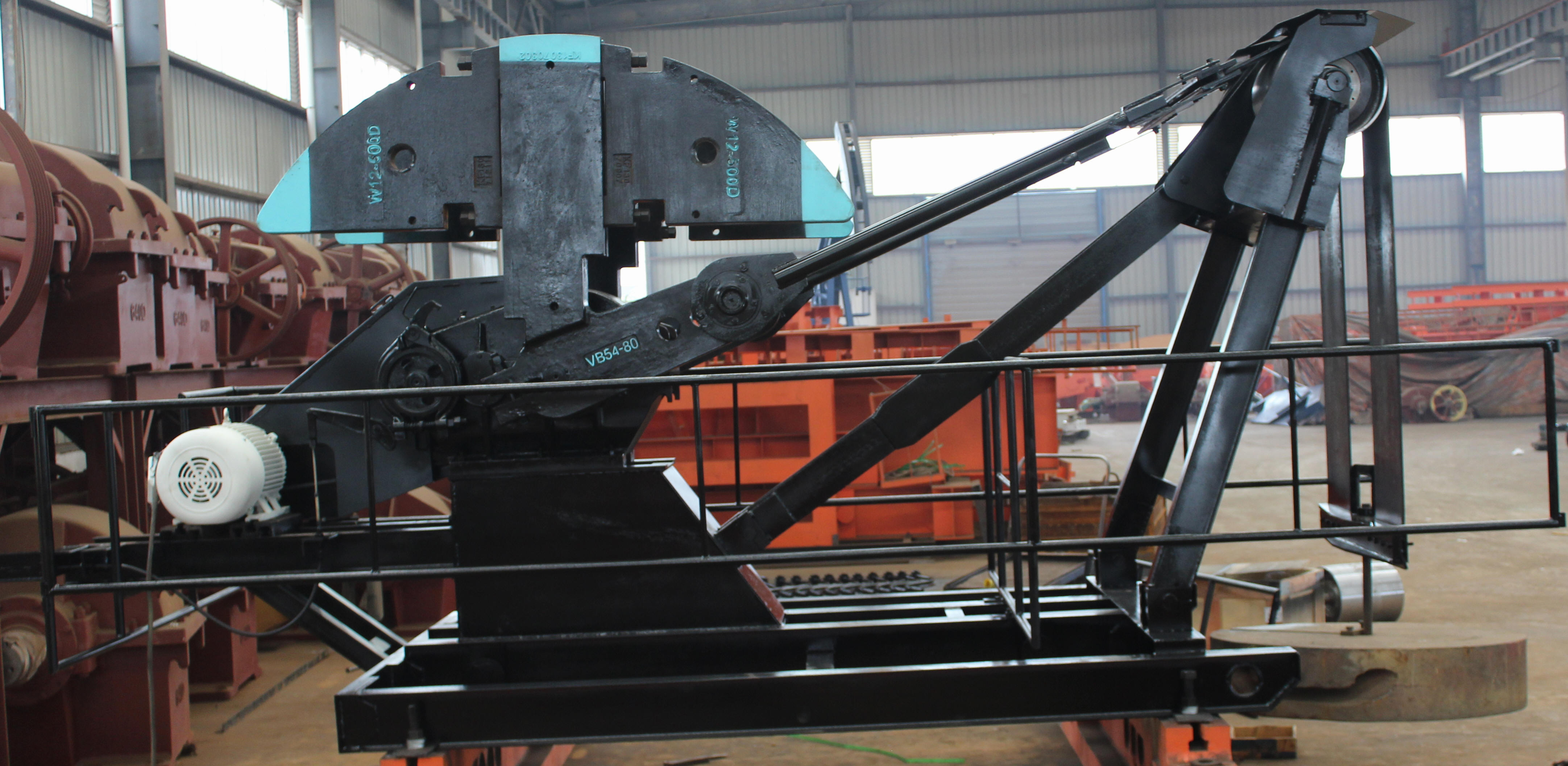

LOWJACK

LOWJACK LP series Pumping Units is a new kind of non-beam energy-saving pumping units, it’s a power equipment on the ground used in sucker rod oil extraction.
The products conform to API Spec.11E “Specification for Pumping Units” and other relative API standards, acquired the authorization to use Official API Monogram.

Technical Performances
1Use roller and belt to form flexible drive, improve impulsive load, prolong service life of gear reducer.
2Abnormally design of crank arm make it balanced completely.
3Gear reducer is involute herring-bone gearing, work smoothly and reliably.
4Small cubage, light weight, the complete machine can be folded totally, it’s convenient for installation and transportation.

Main Technical Parameter

No

Type

Polished Rod Capacity
lb

Stroke Length
in

Rated Torque
in.lb

1

LP-320-256-120

25,600

12010285

320,000

2

LP-320-256-100

25,600

1008570

320,000

3

LP-320-246-86

24,600

867156

320,000

4

LP-228-256-100

25,600

867156

320,000

5

LP-228-213-86

21,300

867156

228,000

6

LP-228-246-86

24,600

867156

228,000

7

LP-228-246-74

24,600

746453

228,000

8

LP-160-173-86

17,300

867462

160,000

9

LP-160-200-74

20,000

746453

160,000

10

LP-160-173-74

17,300

746453

160,000

11

LP-114-173-64

17,300

645444

114,000

12

LP-114-143-54

14,300

544434

114,000

13

LP-114-109-54

10,900

544332

114,000

14

LP-80-133-54

13,300

544332

80,000
