SHINEQUIP ABLE TO PROVIDE HT400,W440,W446,F
SERIES,PZ-9.PZ11,TEE165,TEE300 mud pump and weatherford
high pressure servicing pump,TB3404 well service pump.
 F

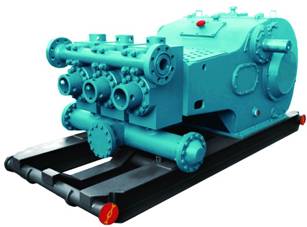

Series mud pump:
General features: Mud pump is rigid and compacted with
excellent performance, which is applicable to high pump
pressure and large discharge for well drilling in oil
field. These pumps have long stroke range and low
numbers of stroke so that it can improve inlet
performance of pump and extend life of easy-broken
parts, besides, structure of air bag is advanced and
reliable.
● Features of dynamic end: A-gear wheel transmission
without slot, alloy steel overall crank shaft, dynamic
end is lubricated with forced and splashed lubricating
oil.
● Frame: Frame is welded with steel plate, stress must
be removed after welded, it is rigid and powerful, and
bearing of crank is made from reinforced steel plate.
● Pinion shaft: Pinion shaft is made from alloy steel
forgings, and A-gear wheel with middle rigid tooth is
processed on shaft.
● Crank shaft: Crank shaft is made from alloy steel
forgings, wherein tooth of big wheel is A-tooth and two
ends of crank shaft are double column radial ball
bearing.
● Piston: Piston and middle rods are connected with pipe
hoop for easy installation.
● The mud pump meets the API Spec 7K ,is allowed to use
the API Monogram.
Performance parameters of mud pump:
|
Model |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
|
Rated power KW |
368 |
588 |
735 |
956 |
1176 |
|
Rated stroke times/min |
165 |
150 |
140 |
120 |
120 |
|
Maximum cylinder diameter×stroke |
￠170×190.5 |
￠170×228.6
|
￠170×254 |
￠180×304.8 |
￠180×304.8 |
|
Inlet pipeline |
8" |
10" |
12" |
12" |
12" |
|
Maximum working pressure (MPa) |
26.77 |
27.26 |
32.85 |
30.6 |
34.3 |
|
Maximum displacement L/S |
36.72 |
41.51 |
43.22 |
50.41 |
50.41 |
|
Weight Kg |
9300 |
14000 |
18000 |
23000 |
24000 |
TEE300
Triplex Pump
MAX POWER：
165HP（121KW）
MAX STROKES：
300Strokes/min
STROKE
LENGTH：
5”（127mm）
INLET PIPE：
6”welding tube or 6”- flange 150#
OUTLET PIPE：
Flange 2 9/16”-10000psi
WEIGHT：
1755Kg（not include base）
|
plunger |
flow/round |
Flow
and pressure chart under different speed（rpm） |
|
100 |
200 |
300 |
|
in |
Gal/rev. |
Liter/rev. |
GPM |
LPM |
PSI |
MPa |
GPM |
LPM |
PSI |
MPa |
GPM |
LPM |
PSI |
MPa |
|
4 |
0.817 |
3.091 |
82 |
309 |
2950 |
20.6 |
163 |
618 |
1475 |
10.4 |
245 |
927 |
975 |
6.9 |
|
3.5 |
0.623 |
2.359 |
62 |
236 |
3800 |
26.8 |
125 |
472 |
1925 |
13.5 |
187 |
708 |
1300 |
9 |
|
3 |
0.460 |
1.741 |
46 |
174 |
5250 |
36.8 |
92 |
348 |
2625 |
18.4 |
138 |
522 |
1750 |
12.3 |
|
2.75 |
0.387 |
1.463 |
39 |
146 |
6150 |
43.3 |
77 |
293 |
3125 |
22 |
116 |
439 |
2075 |
14.6 |
|
2.5 |
0.319 |
1.206 |
32 |
121 |
7550 |
53.2 |
64 |
241 |
3775 |
26.5 |
96 |
362 |
2525 |
17.7 |
|
2.25 |
0.258 |
0.977 |
26 |
98 |
9300 |
65.5 |
52 |
195 |
4650 |
32.8 |
77 |
293 |
3100 |
21.8 |
|
2 |
0.204 |
0.722 |
20 |
77 |
10000 |
70 |
41 |
154 |
5900 |
41.4 |
61 |
232 |
3925 |
27.6 |
|
1.75 |
0.156 |
0.591 |
16 |
59 |
10000 |
70 |
31 |
118 |
7700 |
54.2 |
47 |
177 |
5125 |
36 |
Mechanic
efficientη=90%，full
sector α=100%，volume
efficient 100%。
FEATURE：
l
direct inlet power from crankshaft end
l
Alloy Casting crank shaft
l
Additional oil pump for lubrication system
l
Alloy forged fluid end
l
Clamp connection between sub rod and piston
STANDARD
ASSEMBLY:
l
Pump
body
l
Plunger and filling ,tools and spare parts
PLEASE
CONTACT SHINEQUIP FOR MORE SPEC. |
